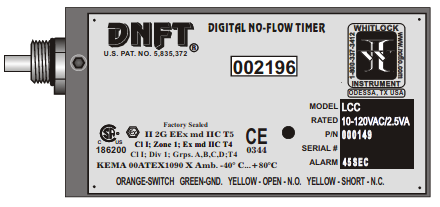

DNFT-LCC P/N:000149|Digital No-Flow Timer (DNFT) premier|Whitlock Instruments

The DNFT-LCC is a totally enclosed electronic device,combining the latest technology in microprocessor and transistor components for detecting Slow-Flow and No-Flow of divider block lubrication systems. The DNFT incorporates an oscillating crystal to accurately monitor the cycle time of the lubrication system to enable precisely timed shutdown capability. The magnet assembly and control housing mount directly to the divider valve to
become an integral part of the lubrication system. The DNFT-LCC operates on field replaceable lithium battery. If battery voltage drops below normal operating levels, the
DNFT goes into alarm mode and the unit cannot be restarted. The LCC comes with a liquid crystal display. The liquid crystal display indicates each divider valve cycle and
total divider valve cycle. The LCC is factory programmed for a 3 minute alarm time.



SPECIFICATIONS（产品规格）
Material（产品材质）：Stainless Steel, Aluminum（不锈钢和铝）
Temperature Range（温度范围）：-40 F to +185 F
Switch Rating AC（开关额定交流电压）：10-120VAC/2.5 VA
Switch Rating DC（开关额定直流电压）：240VDC/2.5VA
Epoxy Encapsulated（环氧树脂灌封）：UL LISTED EL-CAST VFR 641
Power（电源）：Field Replaceable Lithium Battery（现场可更换型锂电池）
Alarm/Shutdown（报警/关闭）：Factory Default for 45 Second alarm（出厂默认值为45秒报警）
Battery（电池型号）：P/N000505
Divider Block Application（配套品牌）：Dropsa/Lincoln/SBCO/Lubriquip
Warranty（质保）：2.5 Years（二年半）

DNFT-PRG（000518）系列
DNFT-LED（000506）系列
